- Assemblation of system (Hardware + Software) -

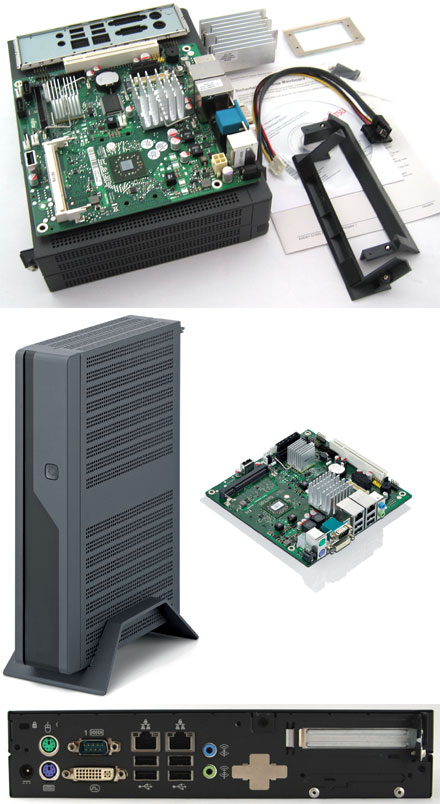

Fujitsu D2963-S2 Barebone (AMD Mobile Athlon Neo X2 L325, 1.5Ghz, ATI Radeon)
PRODUCT IS CURRENTLY NOT AVAILABLE !
- ATI Radeon X1250 graphics on board; VGA, DVI and Dual Channel LVDS
- support HD Audio on board
- Dual GbE LAN on board
- Serial ATA II RAID on board
- CF support (for Embedded OS) on board
- Mini PCI Express support (eg. for WLAN) on board
- USB 2.0 on board
- Board Support Package (BSP) for Windows XP Embedded
- BSP f. Windows CE 6.0 (planned)
- Evaluation BSP for Embedded Linux (emlix)
This barebone was designed for industrial environments. The system can be used for 24/7 operation. The barebone is long term available (5 years).
For a full PC you need in addition :
- 2.5" HDD/SSD or Compac
[more]
RAM :
SSD (2.5"):
OS:
Build/Install:
SSD (2.5"):
OS:
Build/Install:
- ATI Radeon X1250 graphics on board; VGA, DVI and Dual Channel LVDS
- support HD Audio on board
- Dual GbE LAN on board
- Serial ATA II RAID on board
- CF support (for Embedded OS) on board
- Mini PCI Express support (eg. for WLAN) on board
- USB 2.0 on board
- Board Support Package (BSP) for Windows XP Embedded
- BSP f. Windows CE 6.0 (planned)
- Evaluation BSP for Embedded Linux (emlix)
This barebone was designed for industrial environments. The system can be used for 24/7 operation. The barebone is long term available (5 years).
For a full PC you need in addition :
- 2.5" HDD/SSD or CompactFlash
- SO-DDR2-RAM
- 19VDC or 24VDC power source
Dimensions of enclosure : 250 x 52 x 191 mm
