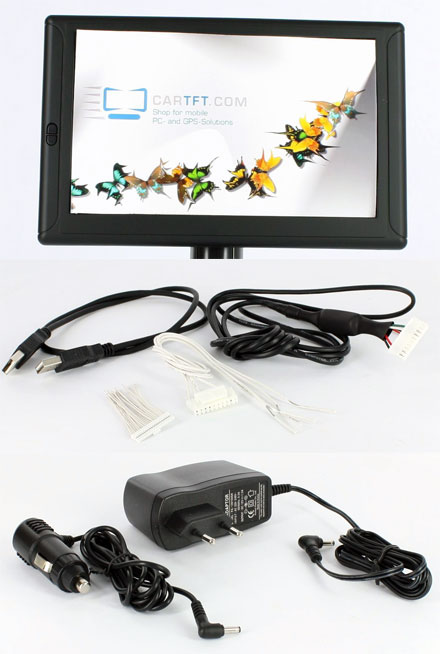

[CTFPND-6] 7" PND (2x RS232, USB-Host, FM, AV-IN, 800x480, 900Mhz, 256MB RAM) [Minimum order qty. 250 units]

PRODUCT IS CURRENTLY NOT AVAILABLE !
[CTFPND-6] 7" PND (2x RS232, USB-Host, FM, AV-IN, 800x480, 900Mhz, 256MB RAM) [Minimum order qty. 250 units]
3D 360° View
  • 2x RS232 !
  • USB Host !
  • Dual Core 900Mhz !
  • 256MB RAM !

The CTFPND-6 is a 7" Touchscreen PND on Windows CE 6.0 basis with integrated GPS receiver and RS232 interfaces. Therefor the CTFPND-6 is the perfect plattform for your telematics application. The extra-high native resolution of 800x480 enables a perfect viewing quality.

The device is equipped with a FM transmitter,2x RS232, USB Host and video input. Optionally this device can be equipped with an external TMC receiver.

Note : This PND is an offer primarily meant for business and project customers. End consumers should only consider purchasing this device when they have appropriate experience.



[more]

Share

The CTFPND-6 is a 7" Touchscreen PND on Windows CE 6.0 basis with integrated GPS receiver and RS232 interfaces. Therefor the CTFPND-6 is the perfect plattform for your telematics application. The extra-high native resolution of 800x480 enables a perfect viewing quality.

The device is equipped with a FM transmitter,2x RS232, USB Host and video input. Optionally this device can be equipped with an external TMC receiver.

Note : This PND is an offer primarily meant for business and project customers. End consumers should only consider purchasing this device when they have appropriate experience.



Hardware
CPU Prima Dual Core 900Mhz
Flash ROM 128MB NAND Flash (BGS type)
SDRAM 256 MB DDR-II
TFT LCD 7" Touchscreen (Samsung, 24bit color)
Resolution 800x480
TMC Optional
RS232 2x Integrated (TTL or 12V depending on adapter cable)
FM Transmitter Integrated
Speaker Integrated
Memory slot SD/SDHC (up to 32GB, SanDisk recommended)
GPS Integrated, SIRFstar III (20 channels)
Video Input 2 AV inputs (Rear CAM support)
Connector - SD extension box (optional)
- 2x Serial port
- USB slave
- Rear camera (3.55mm jack)
- AV-In (3.55mm jack)
- SD slot
- External IR (optional)
- USB Host
- Power socket DC
- 3.55mm stereo earphone jack
- Antenna socket for external GPS antenna (additional antenna not included)
Power 12/24V DC (1.5A PMIC, Rebooting protection circuit)
Weight 368g
Dimensions 190 x 120 x 20 mm
Software
Operating system MS Windows CE.NET 6.0 (core version)
Navigation software Optional
Features - Generic RNDIS driver (installed)
- Compact .NET Framework 3.5 (installed)
Lieferumfang - CTFPND-6 (7" PND)
- Mounting adapter
- 12/24V cigarette lighter adapter
- AC/DC-adapter
- 2x RS232 cable (TTL + 12V) [12V power source not included]
- Window suction mounting unit
Data sheet Download (PDF)
Data sheet Print view

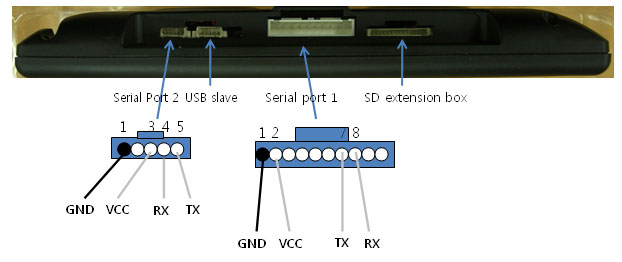

RS232 Pinout Download
WinCE Mode Download
GUI GPS Link Download
Rear camera sensor Download

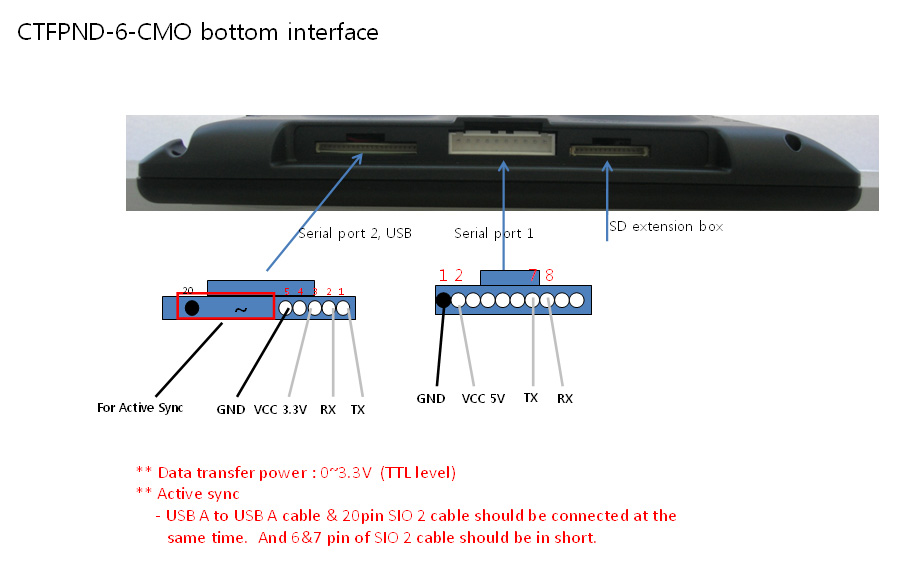

RS232 Pinout (CMO-Version) Download
SDK Download
Developer Notes Download
