Jetway JBC373F38-52L8-B (8x LAN) (Intel Pine Trail-D)

PRODUCT IS CURRENTLY NOT AVAILABLE !

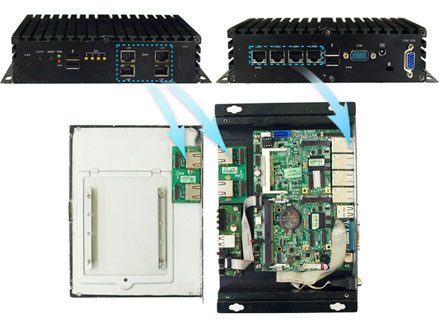

Jetway JBC373F38-52L8-B (8x LAN) (Intel Pine Trail-D)

  • INTEL® Pine Trail-D Processor D525 + ICH8M Chipset
  • Support 1 * DDR3 800/667MHz Single CH up to 4GB
  • Support 1 * Serial ATAII (3Gb/s) Device
  • Support 8x Gigabit LAN
  • Support VGA Output
  • Equipped with 802.11 b/g/n WiFi card & Internal Antenna (JBC373F38W-525-B only)
  • Support 2 * COM ports
  • Support 2.5" SATA HDD drive bay
  • Support 2 * Mini PCI-E socket (one shared with mSATA)
  • Provide CF card socket (Support CF or CF SATA card)
  • Provides Wall mount bracket & VESA mount (Optional)


Share

RAM :

SSD (mSATA):

SSD (2.5"):

Build/Install:
Model No JBC373F38-525-B / JBC373F38W-525-B
Motherboard Specification
CPU INTEL® Pine Trail-D Processor D525
Chipset INTEL®ICH8M Express chipset
Memory 1 * DDR3 800/667MHz Single CH SO-DIMM up to 4GB
Expansion Slots 2 * Mini PCI-E
LAN 8 * Realtek RTL8111EVL PCI-E Gigabit Ethernet LAN
Storage 1* Serial ATA2 3Gb/s connector
1 * CF card socket (Support CF or CF SATA card)
1 * mSATA socket (Shared with one Mini PCI-E socket)
BIOS AMI 16MB SMT Flash ROM
Form Factor 3.5” SBC (148mm x 102mm)。
Barebone Specification
Product size 180 (W) *142 (D) * 48 (H) mm
Specs Devices 1 x 2.5”HDD Drive Bay (Only support SATA 2.5”HDD)
Colors Black
Front I/O Port 1 * Power button & 1 * Reset button
1 * Power LED & 1 * HDD LED
2 * USB 2.0 ports
4 * NIC LED’s
4 * LAN ports
Rear I/O Port 2 * USB 2.0 ports 1 * 12V DC jack
4 * RJ-45 port(Gigabit LAN) 1 * Kensington hole
2 * Antenna holes 1 * VGA & 1 * COM port
Power supply +12V DC-IN Power
Accessory 60W AC-DC Adapter x 1 Power Cord x 1
CD x 1 Manual x 1
COM cable x 1 WI-FI antenna * 1（JBC373F38W–525-B only）
Wall Mount Bracket x 2 LCD VESA Mount Bracket x 1 (Optional)
Application Networking Appliance, Set Top Box, Thin Client
Packing Color Box Dimension：250(W) x 118 (D) x 295 (H) mm
Gross Weight：2.78KG Net Weight：1.43KG
Data sheet Download (PDF)
Data sheet Print view
Jetway Catalog (Rackmount) Download (PDF)
Jetway Catalog (Barebones) Download (PDF)
