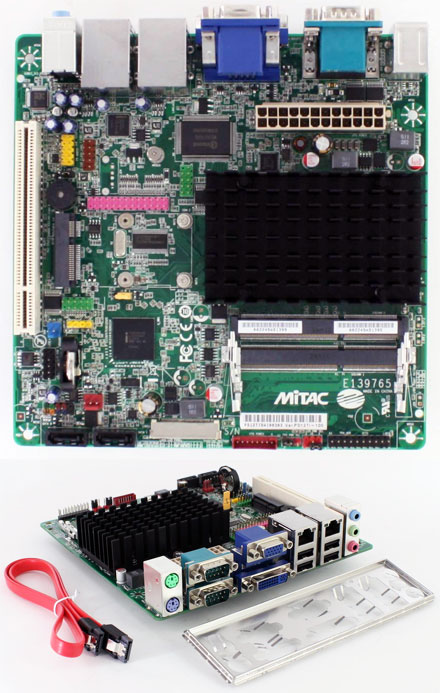

Mitac PD12TI (Intel D2500CC-E) (Intel Atom 2x 1.86Ghz CPU, 2x LAN, 4x RS232) [FANLESS]
PRODUCT IS CURRENTLY NOT AVAILABLE !
This board is produced by MITAC, the OEM producer of Intel D2500CC. This board is identical with Intel D2500CC (even BIOS-compatible).
- Dual-core Atom
- DVI-I for full dual-independent display support
- 4 serial ports & headers for multiple peripherals
- Boards are suitable for other devices; ATM, Kiosk, POS, etc.
| CPU | Intel Atom D2500 2x1.86GHz |
| Graphics | Intel GMA |
| Formfactor | ITX (17x17cm) |
| RAM | 2x SO-DDR-III |
| Audio | 6+2 Channel HD Audio |
| Base | Intel ITX |
| USB | 7x USB 2.0 |
| Firewire | -- |
| IDE/SATA | 2x SATA |
| LAN | 2x 10/100/1000 |
| Parallel | -- |
| Serial | 4x |
| no | TV-Out |
| yes | PCI |
| yes | Mini-PCI |
| no | IDE |
| yes | DVI |
| yes | 800x480 Resolution |
| yes | Passive-Cooling |
| no | PCI-Express |
| no | PCMCIA |
| yes | SATA |
| no | CPU changeable |
| no | Compact Flash |
