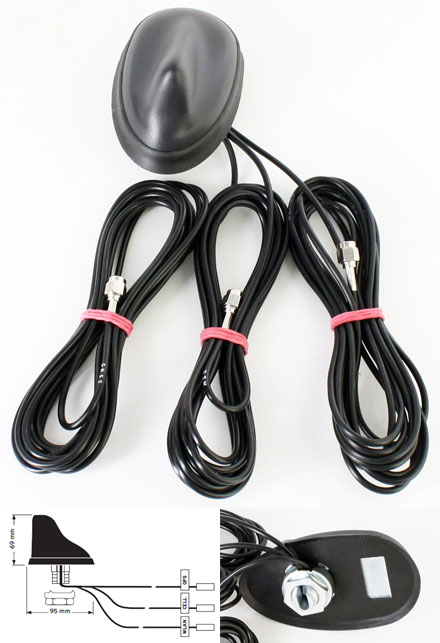

Hirschmann GPS 2400 CELLULAR (Triple vehicle root antenna, 3x FME female 3m, GPS/GLONASS/GSM/UMTS/LTE/WLAN/BT) [955181003]

Hirschmann GPS 2400 CELLULAR (Triple vehicle root antenna, 3x FME female 3m, GPS/GLONASS/GSM/UMTS/LTE/WLAN/BT) [955181003]
  • GPS//GLONASS/GSM/UMTS/3G !
  • WLAN / Bluetooth !
  • Active antenna !
  • FME connectors !

Combined Roof mount antenna "CGNW 702659 SF S/FME/3.0" for Fleet management systems, Navigation, Telematics applications in association with WLAN. Successor model of art. 602392001 and 955001003.



Share

109.95 EUR
incl. 19% VAT, plus shipping
In Stock (15 pcs)

5 von 5 Sternen
1 ratings
Add to cart
Environmental conditions
Temperature range -40° - +85° C
Protection class IP 6k9K (acc. ISO 20653)
Mechanical construction
Housing material PA6
Weight 178 g
Dimensions (W x H x D) 95 x 57 x 72 mm
Installation
Tightening torque max. 5 Nm
GNSS (GPS/GLONASS)
Frequency range GPS: 1,575 MHz - 1610 MHz
GLONASS: 1602,0 - 1614,94 MHz
Return loss (VSWR) > 12 dB
Impendance 50 Ohm
Gain typ. 2 dBic
Amplification 27 dB +-3 dB
Noise figure < 1,9 +- 0,3 dB
Voltage supply 2,9 - 5,5 VDC (ferngespeist)
Current consumption <=12 mA +/- 3 mA at 3,3 V
Cable type RG 174
Cable length 3000 mm
Connector FME female
CELLULAR
Frequency range LTE-LB: 698-862 Mhz
LTE-HB: 2305-2690 Mhz
GSM 850: 824 - 894 MHz
GSM 900: 880 - 960 MHz
GSM 1800: 1710 - 1880 MHz
GSM 1900: 1850 - 1990 MHz
UMTS: 1920- 2170 MHz
Impedance 50 Ohm
Return loss (VSWR) > 12 dB
Decoupling > 40 dB
Rod wave 1/4
Rod gain 2,5 dBi
Cable type RG 174
Cable length 3000 mm
Connector FME female
WLAN
Frequency range Bluetooth: 2400 - 2484 MHz
IEEE Std. 802.11b/g: 2412 - 2484 MHz
IEEE Std. 802.11p: 5755-5925 Mhz
Impedance 50 Ohm
Return loss (VSWR) > 12 dB
Gain 2.5 dBi @ 2.4 GHz; +3 dBi @ 5.8 GHz
Load capacity max. 1 W (acc. IEEE 802.11b/g)
Cable type RG 174
Cable length 3000 mm
Connector FME female
Data sheet Download (PDF)
Data sheet Print view
Specifications Download (PDF)
