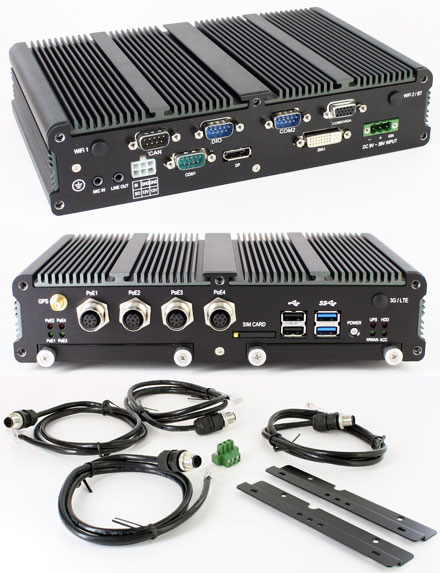

FleetPC-8-i7B-POE Car-PC (Intel Core i7-4650U 2x1.7Ghz, 4GB RAM, Autostart-Controller, 9-36V Automotive PSU, GPS, CAN-BUS, 4x POE) [FANLESS]

PRODUCT IS CURRENTLY NOT AVAILABLE !
FleetPC-8-i7B-POE Car-PC (Intel Core i7-4650U 2x1.7Ghz, 4GB RAM, Autostart-Controller, 9-36V Automotive PSU, GPS, CAN-BUS, 4x POE) [<b>FANLESS</b>]
3D 360° View
  • 4x LAN POE (max. 25.5W)
  • CAN-BUS 2.0B
  • Fanless !
  • 4x RS232 !

The FleetPC-8 Car-PC series offers high performance and maximum connectivity. The 4x LAN (POE+) ports and dual hot-swappable 2.5" drive bays (RAID 0/1 support) and internal SATA DOM module connector, the system is for example perfect for digital IP video recording applications (police, etc.).

3x Mini-PCIe slots allow maximum expandability options including LTE, UMTS, 3G, 3.5G, GSM/GPRS, WLAN and Bluetooth. Two SIM card slots enable redundant mobile connectivity with only one single modem card. The internal ublox6 GPS module enables fast and accurate positioning.

CAN-BUS, 4x RS232/485, 4x digital In/Out and 2xUSB3.0 allow maximum connectivity. DVI, VGA and Disp [more]

Share

RAM :

SSD (2.5"):

OS:

Build/Install:
  • Description
  • Specifications
  • Data sheets and downloads
  • Customer ratings
  • Technical notes
  • Assembling options

The FleetPC-8 Car-PC series offers high performance and maximum connectivity. The 4x LAN (POE+) ports and dual hot-swappable 2.5" drive bays (RAID 0/1 support) and internal SATA DOM module connector, the system is for example perfect for digital IP video recording applications (police, etc.).

3x Mini-PCIe slots allow maximum expandability options including LTE, UMTS, 3G, 3.5G, GSM/GPRS, WLAN and Bluetooth. Two SIM card slots enable redundant mobile connectivity with only one single modem card. The internal ublox6 GPS module enables fast and accurate positioning.

CAN-BUS, 4x RS232/485, 4x digital In/Out and 2xUSB3.0 allow maximum connectivity. DVI, VGA and DisplayPort connectors allow the connection of a variety of displays (support dual independent display). The DVI port also can be connected to CarTFT-CTF displays with an All-in-one cable (VGA/USB/audio/power).

Extensive setup and programming options and Watchdog-ability, optional backup battery kit, wide input range (9-36V), extended temperature range (-40° to 70° C) and vibration-/schock-/eMark-certification complete the offer and make the FleetPC-8 series the ultimate platform for any mobile application need.

This MiniPC was especially designed for fleet applications. The Car-PC can be connected directly to the car battery (12V/24V). Based on ignition plus, the PC will start and shutdown.

For a full PC you need in addition :
- 1-2x 2.5" HDD/SSD or SATA-DOM

The PC is completely fanless and is equipped with an Intel Core i7-4650U 2x1.7Ghz CPU and 4GB RAM (upgradeable up to 16GB).

Available additional modules:
The PC comes with 4x antenna-output and 3x Mini-PCIe slots.
We recommend these modules:
- HSPA / UMTS / EDGE Mini-PCIe Modem (Huawei MU609)
- Wireless LAN / Bluetooth Mini-PCI Express [Qcom Combo]

Features :
- Fanless
- Intel Core i7-4650U 2x1.7Ghz CPU
- Intel HD Graphics 5000 Graphics
- Dual Hot Swappable SATA Storage + SATA DOM
- Dual Sim card slot
- 2x USB3.0
- GPS (ublox 6 with G-sensor)
- 1x CAN BUS 2.0B
- 4x RS232
- 4x Gigabit LAN (POE+)
- DVI-I + DSUB-15 VGA + dP
- Watchdog
- Prepared for GPS, WLAN, GSM/GPRS with ext. antennas
- 4 x DI / 4 x DO
- Vibration/shock tested

For FleetPC-8 we offer an direct connector cable for our TFT-dispays.
