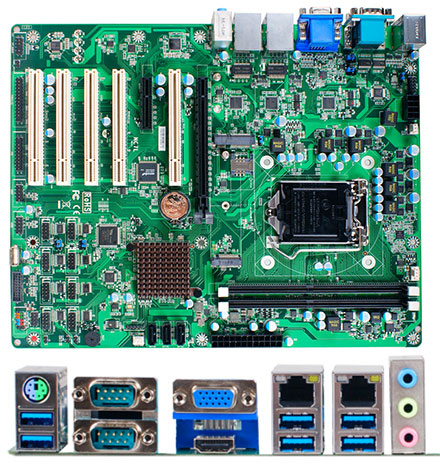

Jetway NC7L-AH110 (Intel Skylake)

Jetway NC7L-AH110 (Intel Skylake)

  • 1*Intel®I219LM Giga LAN +1* Intel® i211AT Giga LAN
  • Support 3 * SATA III (6Gb/s) & M.2 (M key 2242/2280)
  • Support HDMI/VGA Output
  • 2 * External COM and 8 * internal COM (COM1/2 Support RS232/422/485, COM1/2/3/4 Support 5V/12V TTL)
  • 5 * PCI, 1 * PCIeX16, 1 * PCIeX4
  • Support Intel® vPro technology (By CPU)


Share

289.00 EUR
incl. 19% VAT, plus shipping
Available in 3 weeks
Add to cart
RAM :

SSD (mSATA):

SSD (M.2 NVME):

Build/Install:
  • Specifications
  • Data sheets and downloads
  • Customer ratings
 Form Factor
Dimensions – ATX ( 305 * 244mm)
 Processor System
CPU – Intel® LGA1151 Series Processor
Core Number – (by CPU)
Max Speed – (by CPU)
L2 Cache – (by CPU)
Chipset – H110
BIOS – AMI 128M Flash ROM
 Expansion Slot
PCI – 5
Mini-PCIe – 1 (full size)
mSATA – 0
PCIe – 1 * PCI-E x16 + 1 *PCI-E x4 slot
M.2 – 1 (M Key 2242/2280)
SIM Card Holder – 1
 Memory
Technology – Dual CH DDR4 2133MHz DRAM
Max. – 32GB
Socket – 1 * SO-DIMM
 Graphics
Controller – Intel® HD Graphics
VRAM – Shared Memory
VGA – 1
LVDS – 0
eDP 1.3 – 0
HDMI 1.4 – 1 (Max Resolution : 3840×2160@60Hz)
MultiDisplay – Dual Displays
 Ethernet
Ethernet – 10/100/1000 Mbps
Controller – Intel®I219LM +i211AT Gigabit LAN
Connector – 2 * RJ 45
 Audio
CODEC – HD Audio : Realtek ALC662VD
Channel – Line-In, Line-Out, MIC
 SATA
Max Data Transfer Rate – 3 * SATAIII (6.0Gb/s)
 Rear I/O
VGA – 1
HDMI – 1
Ethernet – 2
USB – 6 * USB 3.0
Audio – 1 (Line-in, Line-out, MIC)
Serial / Parallel – 2 / 0 (COM1/2 Support RS232/422/485)
PS2 – 1
DC-input – 0
 Internal Connector
USB – 2 *USB3.0 + 5 * USB 2.0
PS/2 – 0
LVDS / inverter – 0
eDP – 0
Serial – 8 (COM3/4 Support 5V/12V TTL)
SATA – 3 * SATAIII (6.0Gb/s)
mPCIe – 1 (full size)
Parallel – 1
M.2 – 1 (M key 2242/2280)
GPIO – 1 (8 bit)
Chassis intrusion – 1
Audio Header – 1
SMBUS/ I2C – 1
AT mode – 1
TPM Header – 1
Others – 0
 Watchdog Timer
Output – From Super I/O to drag RESETCON#
Interval – 256 segments (10sec ~ 255min)
 Power Requirements
Input PWR – ATX power
Power On AT/ATX Supported
– AT : Directly PWR on as Power input ready
– ATX: Press Button to PWR on after Power input ready
 Certifications
Certifications – CE, FCC, RoHS, REACH
 Environment
Temperature – Operating: 0°C – 60°C
– Storage: -20°C – 85°C
 Warranty
Warranty – 2 Years Limited Warranty
