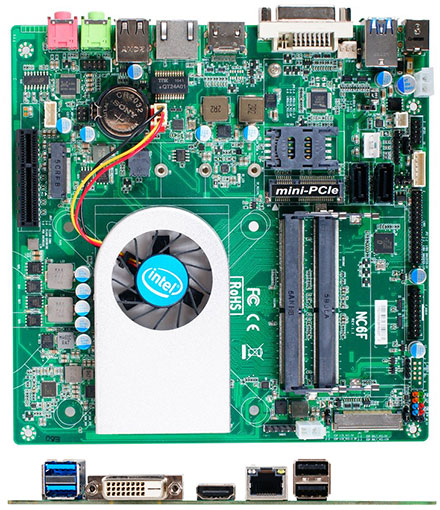

Jetway NC6F-I3855 (Intel Skylake U)

Jetway NC6F-I3855 (Intel Skylake U)

  • Support Intel Celeron mobile processor 3855U (FCBGA1356)
  • TWO 260-pin SO-DIMM up to 32GB DDR4 2133MHz SDRAM
  • Supports 1* DVI-D, 1* HDMI, 1* DP (option)
  • Supports 1* PCIe x4 and 1* Mini PCIe
  • Supports 4* USB3.0, 3* USB2.0
  • Mini ITX Form Factor


Share

239.00 EUR
incl. 19% VAT, plus shipping
Available in 3 weeks
Add to cart
RAM :
 Form Factor
Dimensions – Mini‐ITX (170 * 170mm)
 Processor System
CPU ‐ INTEL® Sky lake 3855U 1.6GHz Dual Cores CPU
Core Number – Dual
Max Speed ‐ 1.6GHz
L2 Cache –
Chipset –  SOC
BIOS ‐ AMI 128Mb Flash ROM
 Expansion Slot
PCI – 0
Mini-PCI-e ‐ 1 (Full size)
PCI‐e ‐ 1 PCI‐Ex4
M.2 ‐ 1(2242/2260/2280)
SIM card holder – 1
 Memory
Technology ‐ DDR4 2133/1866MHz SDRAM
Max. – 32GB
Socket ‐ 2 * SO‐DIMM
 Graphics
Controller – (by CPU)
VRAM ‐ Shared Memory
VGA – 0
LVDS – 1
eDP ‐ 1(Option)
HDMI -1
DVI‐D -1
Display Port – 1(Option)
MultiDisplay ‐ Yes (Three Displays)
 Ethernet
Ethernet ‐ 10/100/1000 Mbps
Controller ‐ 1 * Realtek RTL8111G
Connector ‐ 1 * RJ 45
Audio
CODEC ‐ HD Audio : Realtek ALC662
Channel ‐ 4 Channel
 SATA
Max Data Transfer Rate ‐ 2 * SATAIII (6.0Gb/s)
 Rear I/O
VGA – 0
DVI‐D – 1
HDMI – 1
Display Port – 1(Option)
Ethernet – 1
USB ‐ 4 (2 * USB 3.0 +2*USB2.0)
Audio – 2 (MIC / Line‐out)
Serial – 0
DC‐input – 1
 Internal Connector
USB ‐ 3 ( 1 * USB 2.0 + 2 * USB 3.0)
PS/2 – 1
LVDS / inverter – 1
eDP ‐ 1(Option)
SATA ‐ 2 * SATAIII (6.0Gb/s)
Mini PCI‐e – 1 (Full size)
M.2 ‐ 1(2242/2260/2280)
SIM CARD – 1
GPIO ‐ 4in / 4 out
Speaker ‐1(3W Amp)
Audio Header – 1
SMBUS/ I2C – 1
Power Out – 1(DC 12V)
 Watchdog Timer
Output ‐ From Super I/O to drag RESETCON#
Interval ‐ 256 segments, 0,1,2…255sec/min
 Power Requirements
Input PWR ‐ +19V DC‐in (2‐pin PWR Con)
Power On AT/ATX Supported
‐ AT : Directly PWR on as Power input ready
‐ ATX: Press Button to PWR on after Power input ready
Certifications
Certifications ‐ CE, FCC, RoHS, REACH
 Environment
Temperature –  Operating: ‐10°C ~ 60°C
–  Storage: ‐20°C ~ 85°C
