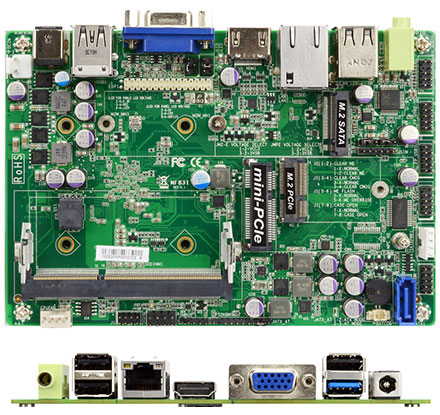

Jetway JNF831-2930 (Intel BayTrail)

PRODUCT IS CURRENTLY NOT AVAILABLE !
Jetway JNF831-2930 (Intel BayTrail)

  • Intel® Bay Trail Series SoC Processor (Default is N2930)
  • Support 1 * DDR3L 1333MHz SO-DIMM, up to 8GB
  • Support 1 * HDMI, 1 * VGA & 1 * eDP port Triple Displays
  • 1 * Internal RS232, 1 * External USB3.0, 3 * USB2.0 & 4 * Internal USB2.0
  • 1 * Full size Mini PCIe and SIM card holder
  • 1 * M.2 (M-key, 2242/2280) & 1 * M.2 (E-key, 2230)


Share

RAM :

SSD (mSATA):

SSD (M.2 NVME):

Build/Install:
  • Specifications
  • Data sheets and downloads
  • Customer ratings
 Model / Part Number
Model – JNF831
Part Number – JNF831
 Form Factor
Dimensions – 3.5” (5.8-in * 4.0-in, 148 * 102mm)
 Processor System
CPU – Intel® Bay Trail Series SoC Processor
Core Number – (by CPU)
Max Speed – (by CPU)
L2 Cache – (by CPU)
Chipset – SoC
BIOS – AMI Flash ROM
 Expansion Slot
Mini-PCIe – 1 (full size)
mSATA – 0
PCIe – 0
M.2 – 1 (M-key, 2242/2280) & 1 (E-key, 2230)
SIM Card Holder – 1 (bottom side)
 Memory
Technology – DDR3L 1333MHz SDRAM
Max. – 8GB
Socket – 1 * SO-DIMM
 Graphics
Controller – Intel® HD Graphics
VRAM – Shared Memory
VGA – 1 (Max. Resolution: 1920*1200@60Hz
LVDS – 0
eDP – 1 (Max. Resolution: 2560*1600@60Hz)
HDMI 1.4a – 1 (Max. Resolution: 1920*1200@60Hz)
Multi Display – Triple Displays
 Ethernet
Ethernet – 10/100/1000 Mbps
Controller – Realtek RTL8111H GbE
Connector – 1 * RJ 45
 Audio
CODEC – HD Audio: Realtek ALC662
Channel – 2 Channel
 SATA
Max Data Transfer Rate – 1 * SATAII (3.0Gb/s)
 Rear I/O
VGA – 1
HDMI – 1
Ethernet – 1
USB – 1 * USB 3.0 & 3 * USB 2.0
Audio – 1 (Line out)
Serial / Parallel – 0 / 0
DC-input – 1
 Internal Connector
USB – 4 * USB 2.0
PS/2 – 1
eDP – 1
Serial – 1 * RS232
SATA – 1 * SATAII (3.0Gb/s)
mPCIe – 1 (full size)
mSATA – 0
M.2 – 1 (M-key, 2242/2280), 1 (E-key, 2230)
GPIO – 1 (8 bit)
Chassis intrusion – 1
Audio Header – 1
SMBUS/ I2C – 1
AT mode – 1
TPM Header – On board (option)
 Watchdog Timer
Output – From Super I/O to drag RESETCON#
Interval – 256 segments (10sec ~ 255min)
 Power Requirements
Input PWR – 12V DC-in
Power On AT/ATX Supported
– AT : Directly PWR on as Power input ready
– ATX: Press Button to PWR on after Power input ready
 Certifications
Certifications – CE, FCC, RoHS, REACH
 Environment
Temperature – Operating: 0°C ~ 60°C
– Storage: -20°C ~ 85°C
 Warranty
Warranty – 2 Years Limited Warranty
