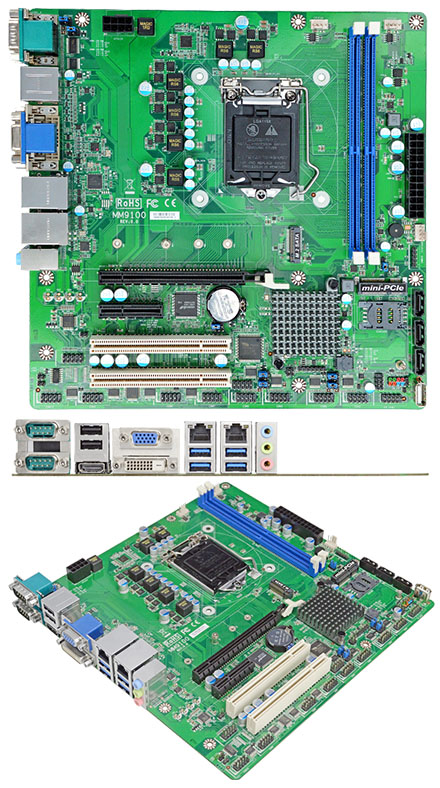

Jetway MM91-00 Micro-ATX (Intel H110, LGA1151)

Jetway MM91-00 Micro-ATX (Intel H110, LGA1151)
  • Intel 6th/7th Gen. !
  • H110 Chipset !
  • Micro ATX !
  • 10x COM !

  • Intel® LGA1151 Socket Core i3, i5, i7 & Pentium Processors (Max. 65W))
  • Intel® H110 Express Chipset
  • Support Dual Channel DDR4 2133MHz, 2* UDIMM slot up to 32GB memory
  • 2* Intel Gigabit LAN (I219-V + I211-AT)
  • 3* SATA III (6Gb/s), 1* M.2 (M-key 2242/2260/ 2280/22110)
  • 4* USB 3.0, 5* USB 2.0, 10* COM ports (COM1 supports RS232/422/485)
  • Support TPM function (option)
  • Micro ATX form factor (244mm x 244mm)



Share

289.00 EUR
incl. 19% VAT, plus shipping
Available in 3 weeks

Add to cart
 Model / Part Number
Model – MM91-00: No TPM
– MM91-02: TPM 2.0 onboard
Part Number – MM91-00: No TPM
– MM91-02: TPM 2.0 onboard
 Form Factor
Dimensions – Micro ATX (244 * 244mm)
 Processor System
CPU – Intel® LGA1151 SkyLake/KabyLake Processor (Max. 65W TDP)
Core Number – (By CPU)
Max Speed – (By CPU)
Cache – (By CPU)
Chipset – H110
BIOS – AMI Flash ROM
 Expansion Slot
Expansion – 1* Mini PCIe (full size)
– 1* PCIex16 slot
– 1* PCIex4 slot
– 2* PCI
– 1* SIM card slot
 Memory
Technology – Dual CH DDR4 2133MHz UDIMM
Max. – 32GB
Socket – 2* UDIMM
 Graphics
Controller – Intel® HD Graphics
VRAM – Shared Memory
VGA – 1 (Max Resolution: 1920×1200@60Hz)
DVI-D – 1 (Max Resolution: 1920×1200@60Hz)
HDMI 1.4 – 1 (Max Resolution: 4096×2160@30Hz)
Multi Display – Dual Displays
 Ethernet
Ethernet – 10/100/1000 Mbps
Controller – PCIe GbE: 1* i219V, 1* i211AT
Connector – 2 * RJ45
 Audio
CODEC – HD Audio: Realtek ALC662
Channel – 6 Channel
 SATA
SATA – 3* SATAIII
 I/O Connector
Rear I/O – 1* VGA
– 1* HDMI
– 1* DVI-D
– 2* Ethernet RJ45
– 4* USB 3.1 (Gen. 1) & 2* USB2.0
– Line-In, Line-Out, MIC
– 2* COM (COM 1 support RS232/422/485)
Internal Connector – 2* USB 2.0, 1* USB2.0 (Vertical type)
– 1* PS/2
– 8* COM
– 3* SATAIII
– 1* SIM card slot
– 1* Mini PCIe (full size)
– 1* M.2 M-key 2242/2260/2280/22110 (SATA I/F)
– 1* GPIO (8 bit)
– 1* Chassis intrusion
– 1* Audio Header
– 1* SMBUS
– 1* AT mode
– Support onboard TPM (option)
 Watchdog Timer
Output – From Super I/O to drag RESETCON#
Interval – 256 segments (10sec ~ 255min)
 Power Requirements
Input PWR – ATX PWR (8+24 pin)
Power On AT/ATX Supported
– AT : Directly PWR on as Power input ready
– ATX: Press Button to PWR on after Power input ready
 Certifications
Certifications – CE, FCC, LVD, RoHS, REACH
 Environment
Temperature – Operating: 0°C ~ 60°C
– Storage: -20°C ~ 85°C
 Warranty
