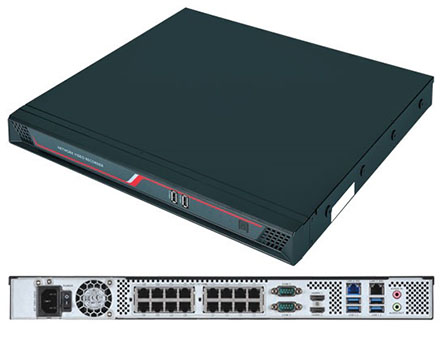

Mitac NV1-6305E-16POE (Intel Celeron 6305E, 16-CH Video decoding / analytics)

Mitac NV1-6305E-16POE (Intel Celeron 6305E, 16-CH Video decoding / analytics)
  • Intel Celeron 6305E !
  • 16x PoE !
  • 4x RS232 !
  • 2x 3,5" HDD !

  • Intel® Celeron 6305E Processor
  • 16-CH H.265/H.264 decoding ability & simultaneous playback
  • 16-CH AI video analytics (7.1 TOPS)
  • Equipped 0/8/16x 802.3 at/af PoE ports
  • Support 2 x HDD RAID 0/1 storage


Share

849.00 EUR
incl. 19% VAT, plus shipping
Available in 3 weeks
Add to cart
RAM :

SSD (M.2 NVME):

SSD (2.5"):

OS:

Build/Install:
CPU 11th Gen Tiger Lake-UP3 Intel® 6305E ULV Processor, 1.80 GHz, TDP:15W
CHIPSETIntel® SoC Integrated
SYSTEM MEMORYDDR4 3200 MHz
/ 2 x 260-pin SO-DIMM
/ Max. 64 GB (Non-ECC)
GRAPHICSIntel® Iris Xe Graphics / Video Decoding (1080P,H264 / H.265): up to 64 channels / Video Recoding (1080P,H264 / H.265): up to 64 channels / Video Playback(1080P): up to 64 channels / Video Analytics / Deep Learning (1080P): 16 channels (7.1 TOPS)
DISPLAY INTERFACE2 x HDMI 1.4 (Up to 4K@30 Hz)
STORAGE SLOT2 x 3.5" internal HDD(RAID 0/1)
ETHERNETIntel® I219-LM Giga LAN / Intel® I225-LM 2.5GbE LAN
AUDIORealtek® ALC888S
I/O CHIPSETNuvoton NCT6126D(eSPI)
TPMNuvoton NPCT750AABYX TPM2.0
EXPANSION SLOTM.2 2280 / 2260 / 2242 M key (PCIe, SATA)
/ Mini PCIe Full / Half size (PCIe / USB / SATA)
INDICATORPower Button / Alarm LED / Power LED / HDD LED
FRONT I/O2 x USB 2.0
REAR I/O2 x HDMI 1.4
/ 4 x USB 3.2 Gen 2
/ 1 x RS232
/ 1 x RS485
/ 2 x RJ-45
/ 1 x Line-out
/ 1 x Line-in
H/W MONITOR-
WATCHDOG TIMER-
POWER INPUT100~240V AC-in
POWER ADAPTERBuilt-in 250W Flex ATX PSU with AC Plug
THERMAL DESIGNFan
MOUNTINGRackmount
DIMENSIONS (W X D X H)19" 1U Chassis : 427 x 381 x 44.4 mm
WEIGHT3.5 kg
MATERIAL Bezel: Plastic / Chassis: Steel
OPERATING TEMPERATURE0 ~ 50°C (32 ~ 122°F)
STORAGE TEMPERATURE-20 ~ 70°C (-4 ~158°F)
OPERATING HUMIDITY10% ~ 90% R/H (Non-condensing)
VIBRATION RESISTANCE5Hz~500Hz / 2Grms / 3Axis (Non-operating)
SHOCK RESISTANCE120G, 2ms Duration (Non-operating)
CERTIFICATIONCE / FCC Class B
OS SUPPORTWindows® 10 64-bit / Linux (support by request)
PACKAGE1 x Quick Installation Guide / 1 x Embedded System / 1 x Screws kit / 1 x Rackmount kit
