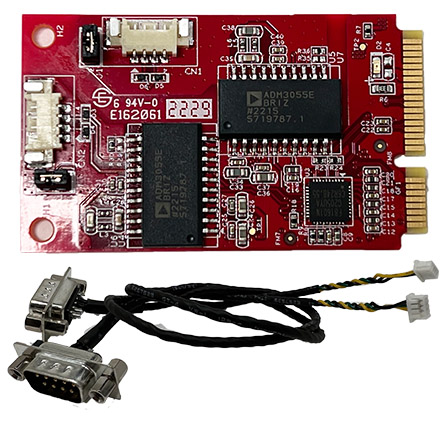

EMPC-B2S1-W1 (Dual isolated CANbus 2.0B Mini-PCIe Module)

EMPC-B2S1-W1 (Dual isolated CANbus 2.0B Mini-PCIe Module)
  • Successor VDB-121-EMUC-B202

USB to dual isolated CANbus 2.0B Module

Features:

  • Compliant with PCI Express 1.1
  • Meet the Requirements of the ISO 11898-1
  • CAN bus 2.0B backward compatible with 2.0A
  • Support baud rate 10/20/50/100/250/500/800/1000K
  • Support CAN message acceptance filter
  • Support Linux SocketCAN
  • Support SAE J1939/CANopen high layer protocol (Optional)
  • Compliant with IEC 60950-1:2005 + A1: 2009 + A2:2013 2.5kV HiPOT protection
  • Compliant with EN61000-4-2 (ESD) Air-15kV, Contact-8kV
  • Termination resistor enabled/disabled by jumper
  • 30μ” golden finger, 3-year warranty
  • [more]

    Share

149.95 EUR
incl. 19% VAT, plus shipping
In Stock (8 pcs)

Add to cart

USB to dual isolated CANbus 2.0B Module

Features:

  • Compliant with PCI Express 1.1
  • Meet the Requirements of the ISO 11898-1
  • CAN bus 2.0B backward compatible with 2.0A
  • Support baud rate 10/20/50/100/250/500/800/1000K
  • Support CAN message acceptance filter
  • Support Linux SocketCAN
  • Support SAE J1939/CANopen high layer protocol (Optional)
  • Compliant with IEC 60950-1:2005 + A1: 2009 + A2:2013 2.5kV HiPOT protection
  • Compliant with EN61000-4-2 (ESD) Air-15kV, Contact-8kV
  • Termination resistor enabled/disabled by jumper
  • 30μ” golden finger, 3-year warranty
  • Industrial Temperature (-40°C to +85°C) support
  • Industrial design, manufactured in Taiwan

Form-Factor mPCIe to dual isolated CANbus 2.0B/J1939/CANopen
Input I/F PCI Express 1.1
Output I/F CANbus 2.0B
Output connector 2 x DB-9
Power Consumption MAX: 2.834W (3.3V, 859mA)
Dimensions 30 x 50.9 x 8.25 mm
Temperature Operation: W/T temp: -40°C ~ +85°C
Storage: -55°C ~ +95°C
Environment Vibration: 5G @7~2000Hz
Shock: 50G @ 0.5ms
Software Download driver and API from MyInnodisk website.
Windows: 7(32/64bit), 8/8.1(32/64bit), 10(32/64bit)
Linux: SocketCAN driver from Kernel 2.6.38 and above (32/64bit)
Data sheet Download (PDF)
Data sheet Print view
