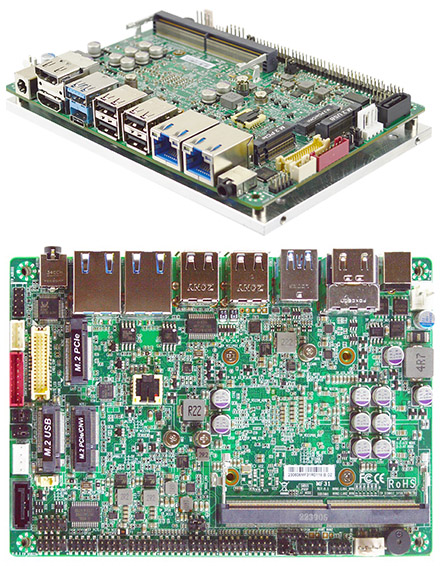

The JETWAY JF35-ADN1 Series is 3.5” form factor board adopts the Intel® Alder Lake-N SoC Processor with 12W TDPs. The board supports one SO-DIMM DDR5 4800MHz memory up to 32 GB, one SATAIII (6 Gb/s) interface, one M.2 M-key and 64GB onboard eMMC (optional) for storage devices. Featuring the integrated Intel® 2.5 Gigabit Ethernet controller, the JF35-ADN1 Series offers two 10/100/1000/2500 Base-TX Ethernet device for network transmission. Two USB3.2 Gen.2 ports, eight USB2.0 ports and six COM ports provide versatile expansion. The board also support one M.2 E-key (2230) slot and one M.2 B-key (3042/3052) slot. The JF35-ADN1 Series offers two HDMI2.0b ports and one LVDS (co-layout eDP) with triple independent displays. Because of the above features, JF35-ADN1 Series is suitable for Panel PC, IOT Solution, Edge computing and Industrial PCs applications.

• Intel® Alder Lake-N SoC Processor (TDP 12W)
• 1* DDR5 4800MHz SO-DIMM up to 32GB
• 2* Intel i225V 2.5GbE
• 2* HDMI 2.0b, 1* eDP (co layout LVDS), 1* LVDS w/Inverter
• 1* SATAIII (6Gb/ s), 6* COM, 1* USB3.2 (Gen.2) Type-A, 8* USB 2.0, 1* USB Type-C (ALT mode)
• 1* M.2 M-key(2280) support NVMe, 1* M.2 E-key(2230) support CNVi, 1* M.2 B-key(3042/3052) support 4G/5G module
• Support 12~ 28 V DC-in
• Support Onboard TPM2.0
