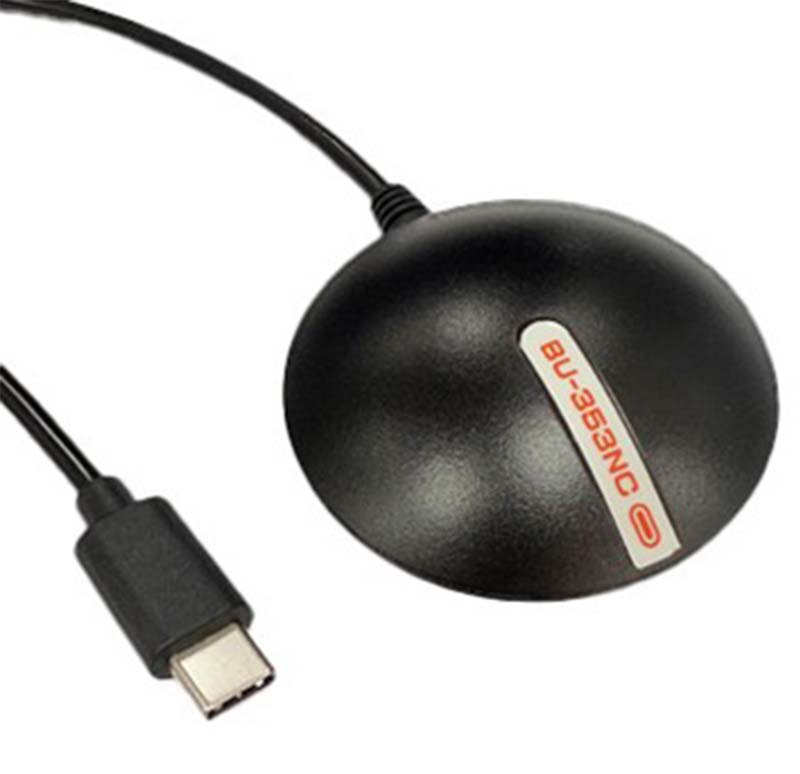

Globalsat BU-353NC USB-C GPS RECEIVER (GPS, SBAS, NMEA)

Globalsat BU-353NC <b>USB-C</b> GPS RECEIVER (GPS, SBAS, NMEA)
  • High performance chipset !
  • LED indicator for GPS fix !
  • USB-C !

BU-353NC features a USB-C interface, high GPS sensitivity, and low power consumption. The BU-353NC is powered by High sensitivity GPS solution. The BU-353NC can provide you with superior sensitivity and performance even in urban canyon and dense foliage environment. The BU-353NC supports 75 channel all-in-view tracking. BU-353NC acquires and tracks satellites in the shortest time. The cable allows for easy routing to your equipment behind, headliners and side panels and terminates to a custom USB-C connector.

  • High sensitivity solution
  • Very high sensitivity chipset (Tracking Sensitivity: -165 dBm)
  • Extremely fast TTFF (Time To First Fix) at low signal [more]

    Share

59.95 EUR
incl. 19% VAT, plus shipping
In Stock (2 pcs)
Add to cart

BU-353NC features a USB-C interface, high GPS sensitivity, and low power consumption. The BU-353NC is powered by High sensitivity GPS solution. The BU-353NC can provide you with superior sensitivity and performance even in urban canyon and dense foliage environment. The BU-353NC supports 75 channel all-in-view tracking. BU-353NC acquires and tracks satellites in the shortest time. The cable allows for easy routing to your equipment behind, headliners and side panels and terminates to a custom USB-C connector.

  • High sensitivity solution
  • Very high sensitivity chipset (Tracking Sensitivity: -165 dBm)
  • Extremely fast TTFF (Time To First Fix) at low signal level
  • Support NMEA 0183 data protocol
  • Built-in Backup power to reserve system data for rapid satellite acquisition
  • Built-in patch antenna
  • Super-cohesive magnetic for mounting on the car
  • Water resistant and non-slip on the bottom
  • USB interface connection port
  • LED indicator for GPS fix or not fix

    • ->LED OFF: Receiver switched off
    ->LED ON: No fixed network, signal search
    ->LED flashes: Position fixed




General
Chipset High performance chipset
Frequency GPS, SBAS : L1, 1575.42 MHz C/A code
C/A code 1.023 MHz chip rate
Channels 75 track verification channels
Sensitivity Tracking: -165 dBm

Accuracy
Accuracy
<2.5 meters, 2D RMS, SBAS enabled
Velocity 0.1m/sec 95% (SA off),
Time 1us synchronized to GPS time

Datum
Default WGS-84

Acquisition Time
Reacquisition 0.1 sec., average
Hot start < 1 sec., average
Cold start < 33 sec

Dynamic Conditions
Altitude 18,000 meters (60,000 feet) max
Velocity 515 meters /second (1000 knots) max
Acceleration Less than 4g
Jerk 20m/sec

Power
Main power input 5V (+/- 5%) DC input
Power consumption 42mA @5V

Protocol
GPS Protocol Default: NMEA 0183 (Secondary AIROHA and almanac valid)
Commands>position, velocity, altitude, status and control
GPS Output Data NMEA 0183 MEA0183 V3.01/V4.10 protocol support
GPS transfer rate Software command setting Default: 4800,n,8,1 for NMEA

Physical Characteristics
Dimension 53mm diameter, 19.2mm height
Cable Length 1.5M
Operating temperature -40℃ to +85℃
Data sheet Download (PDF)
