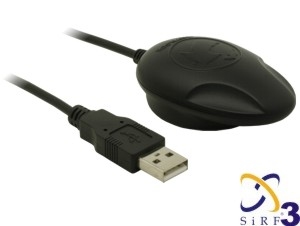

USB GPS Receiver (Sirf 4 chipset) [SPECIAL]

USB GPS Receiver (<b>Sirf 4</b> chipset) [<b>SPECIAL</b>]
  • Sirf 3 chipset !
  • BU353
  • Waterproof !

The BU353 GPS receiver features the new chipset SIRF4, is waterproof and has a magnetic and rugged case bottom. The integrated highly sensitive GPS Aaerial gives you a maximum receiption quality.

The connection cable can be enlarged up to 5 meters for optimal placement of the receiver. The integrated USB-to-Serial bridge eases usage. For installation you only need a small USB driver.



Share

29.95 EUR
incl. 19% VAT, plus shipping
Available in 3 weeks
5 von 5 Sternen
2 ratings
Add to cart
  • Specifications
  • Data sheets and downloads
  • Customer ratings

Technical details

General spezifications

SiRF Star IV High Performance GPS Chipset High Sensitiv (Tracking sensivity: -163 dBm) Very short TTFF (Time To First Fix) even with low signal Support of NMEA 0183 protocol Interneral memory for faster re-tracking of position Internal patch aerial Magnetical case bottom Internal USB to Serial bridge Waterproof and rugged casing LED for GPS Status

Specifications

Chipset: SiRF Star IV Frequency: L1, 1575.42 MHz C/A Code: 1.023 MHz Channels: 48 Kanäle max. Sensivity: -163 dBm Accuracy 2m, 2D RMS SBAS Acceleration: 0.1 m/s Time: 1us to GPS time

Date

Standard setting: WGS-84

Positioning times

Re-Tracking: 0.1 sek., average Hot start: 8 sek., average Warm start: 35 sek., average Cold start: 35 sek., average

Dynamical environments

Receiption height: Max. 18,000 Meters (60,000 Feet) Receiption speed: Max. 515 Meter /second (1000 Knoten) Acceleration: Max. 4g Shock: Max. 20m/Sek × 3

Power supply

Power connection: 5V DC by USB port Power consumption: approx. 60mA

Interface

Protocol type: TTL Output voltage: 0V~2.85V Baudrate: 4,800 bps Output protocol: NMEA 0183 GGA, GSA, GSV, RMC, VTG, GLL v2.2 (VTG and GLL are optional)


Physical

Dimensions: 59mm x 47mm x21mm Cable length: 1,5 Meters Operation temperature range: -40°C to +85°C
