InDash Car-PC V2 Barebone (incl. VIA M10000 + M1-ATX) [available only on request]

PRODUCT IS CURRENTLY NOT AVAILABLE !

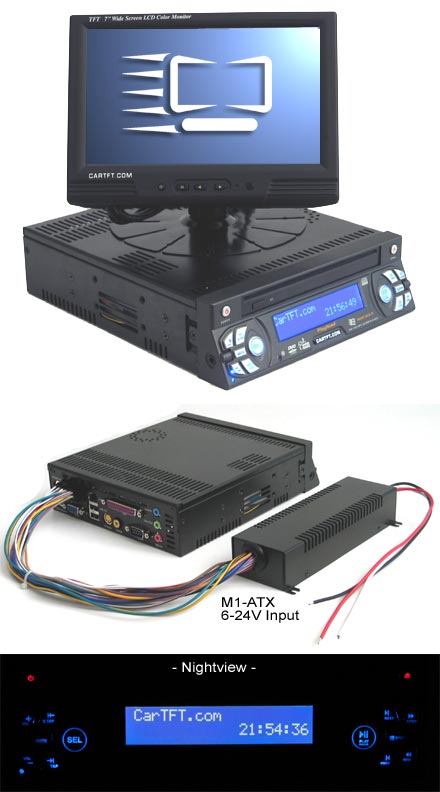

InDash Car-PC <b>V2</b> Barebone (incl. VIA M10000 + M1-ATX) [<b>available only on request</b>]
  • True DIN-Size !
  • Mini LCD-Display !
  • IR Remote !

(Display MM400 not included)

Scope of delivery :
- DIN-sized casing with integr. VIA Mainboard/CPU
- 2x20 lines LCD (+ Software f. Windows)
- IR remote control (with Joystick-mouse-control)
- IR Sensor
- M1-ATX power supply with integr. auto-start/-shut-controller
- installation brackets
- Driver and manual CDs
- 2x IDE cables f. HDD & CD/DVD
- Slimline-to-IDE Adapter

Technical specifications :
CPU : VIA C3 Nehemiah 1Ghz
USB : 3x USB 2.0 (2x back, 1x front)
TV-Out : S-Video, RCA (PAL/NTSC)
Power : 12VDC Power Supply (6-24V) with integrated automatic On/Off-control
Dimensions : 176 mm wi
[more]

Share


SSD (2.5"):
  • Description
  • Data sheets and downloads
  • Customer ratings

(Display MM400 not included)

Scope of delivery :
- DIN-sized casing with integr. VIA Mainboard/CPU
- 2x20 lines LCD (+ Software f. Windows)
- IR remote control (with Joystick-mouse-control)
- IR Sensor
- M1-ATX power supply with integr. auto-start/-shut-controller
- installation brackets
- Driver and manual CDs
- 2x IDE cables f. HDD & CD/DVD
- Slimline-to-IDE Adapter

Technical specifications :
CPU : VIA C3 Nehemiah 1Ghz
USB : 3x USB 2.0 (2x back, 1x front)
TV-Out : S-Video, RCA (PAL/NTSC)
Power : 12VDC Power Supply (6-24V) with integrated automatic On/Off-control
Dimensions : 176 mm width x 50 mm height x 200 mm depth
Weight : 1.81 kg

Compatible hardware :
RAM : DDR 256 MB slim 0.8" inches
HDD : 2.5" 40 GB HDD
Drive : Slot-In DVD Drive

Other features :
- IR remote control for controlling computer !
- Mini-LCD Display with blue backlight (display is programmable and comes with many presets for eg. Winamp, MS Media Player, Outlook, Hardware Monitor,...)
- Earphone jack and USB connector integrated in unit front !

Example installation in Lamborghini


Installation manual : Support / Manuals
